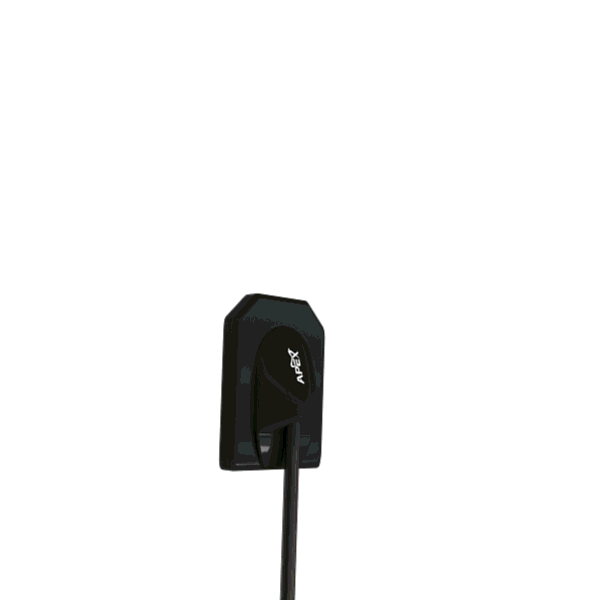

Apex Dental Sensor Technical Specifications

	Apex Dental Sensor Size #1	Apex Dental Sensor Size #2
Sensor Type	CMOS APS
Fiber Optical Plate	Yes
Scintillator	Csl: Ti
Physical Size	25.0mm x 39.0mm	30.4mm x 41.9mm
Active Area	20mm x 30mm (600mm²)	26mm x 34mm (884mm²)
Sensor Thickness	5.3mm
Cord Length	2 meters (approximately 6.5 feet)
Pixel Size	20μm
Image Pixel	1.5M (1000*1500)	2.2M (1300*1700)
Resolution (Ip/mm)	Theoretical: 25 line pair/mm
	Measured: >20 line pair/mm
Operating System	XP/Win7/Win8/Win10 (32bit & 64bit)
Additional	TWAIN Driver
